Why Quality Stainless Steel Wire Mesh Matters for Your Business
When you source stainless steel wire mesh for industrial filtration, sieving, or protection, you are not just buying a roll of wire fabric. You are investing in process reliability, product consistency, and long-term operational safety.
For distributors and industrial suppliers serving the US, European, and South American markets, the difference between a trusted supplier and a problematic one often comes down to three key factors:
- Material traceability
- Weave precision
- Delivery consistency
At Hightop Metal Mesh, we manufacture our own stainless steel wire mesh in a dedicated factory. We do not trade — we produce. This gives our customers direct control over quality, cost, and lead times.
In this article, we break down the materials, weaving methods, and applications you need to know, and explain why working with a factory like Hightop reduces your supply chain risk.
Part 1: Available Materials – From 201 to 904L
Full Range of Austenitic Stainless Steel Grades
We offer a complete range of stainless steel grades to match different corrosive environments, temperature requirements, and mechanical demands.
| Grade | Key Properties | Typical Application Environment |
| AISI 201 | Low nickel, cost-effective | Mild corrosion, indoor sieving |
| AISI 302 | General purpose, good ductility | Standard industrial filters |
| AISI 304 / 304L | Excellent corrosion resistance, weldable | Food, chemical, general filtration |
| AISI 316 / 316L | Superior pitting resistance, molybdenum added | Marine, pharmaceutical, acidic fluids |
| AISI 321 | Titanium-stabilized for high temperatures | Exhaust systems, high-heat filters |
| AISI 310 | Maximum heat resistance (up to 1150°C) | Furnace parts, thermal processing |
| AISI 904L | Extreme acid resistance (high nickel & molybdenum) | Sulfuric/phosphoric acid plants |
What This Means for Your Business
Whether your end client needs:
- A basic 304 meshfor sand sieving in Brazil
- Or a 904L filterfor a chemical plant in Germany
We supply the exact grade with full material test reports. Every batch is fully traceable.
Part 2: Five Weaving Methods – Precision for Every Application
Why Weaving Method Matters
Weaving is not a one-size-fits-all process. The wrong weave can lead to:
- Clogging
- Premature wear
- Inaccurate particle separation
At Hightop, we master five distinct weaving methods:
1. Plain Weave
- Structure: Each wire passes alternately over and under
- Best for: General sieving, protection screens, construction reinforcement
- Advantage: Good strength-to-open-area ratio
2. Twill Weave
- Structure: Each wire passes over two and under two wires
- Best for: Finer filtration with strength requirements
- Advantage: Smoother surface and better flow rates
3. Plain Dutch Weave
- Structure: Thicker warp wires + thinner weft wires, tightly packed
- Best for: High-pressure filtration, liquid-solid separation
- Advantage: Excellent particle retention with reduced clogging
4. Twill Dutch Weave
- Structure: Twill pattern combined with dense Dutch weave
- Best for: Very fine filtration (5–10 microns)
- Advantage: High strength at micron-level filtration
5. Reverse Dutch Weave
- Structure: Thinner warp wires + thicker weft wires
- Best for: High flow rate with effective filtration
- Advantage: Balanced strength and permeability
What This Means for Your Business
You don’t need to be a weaving expert — your supplier should be.
We help you match the correct weave to real-world conditions, such as:
- Acidic slurry in mining operations
- High-purity gas filtration in laboratories
Part 3: Key Properties That Build Trust
How We Address Customer Concerns
When customers ask, “Is this stainless steel mesh reliable?”, they are really asking:
| Customer Concern | How Hightop Solves It |
| Corrosion resistance | Certified AISI coils, no mixed scrap |
| Uniform mesh opening | Automated looms with real-time tension control |
| Durability under vibration | Annealing process relieves internal stress |
| Batch consistency | Every production lot is sampled and recorded |
Core Advantages of Stainless Steel Mesh
- Acid & alkali resistance:Suitable for pH 2–12 environments
- Wear resistance:Handles continuous abrasive flow
- Heat resistance:Up to 1150°C depending on grade
Non-contaminating: No rust particles in sensitive processes
Part 4: Industries and Applications We Serve
Industry-Specific Recommendations
| Industry | Typical Use | Recommended Grade & Weave |
| Oil & Gas | Mud screens, shale shaker filters | 316L / Twill Dutch |
| Chemical & Fiber | Polymer filtration, catalyst sieving | 304L / Plain Dutch |
| Electroplating | Acid pickling mesh, anode baskets | 316 / Reverse Dutch |
| Pharmaceutical | Powder sieving, tablet coating | 304 / Plain Weave |
| Food Processing | Flour sifting, juice filtration | 304 / Plain Weave |
| Construction | Reinforcement, ceiling panels | 201 or 304 / Plain Weave |
| Mining & Aggregates | Sand and gravel sieving | 302 / Twill Weave |
| Aerospace | High-temperature gas filtration | 310 or 321 / Dutch Weave |
| Marine | Desalination pre-filters | 316L / Plain Dutch |
Additional Applications
Stainless steel wire mesh is also widely used for:
- Machine guards
- Animal cages
- Ventilation screens

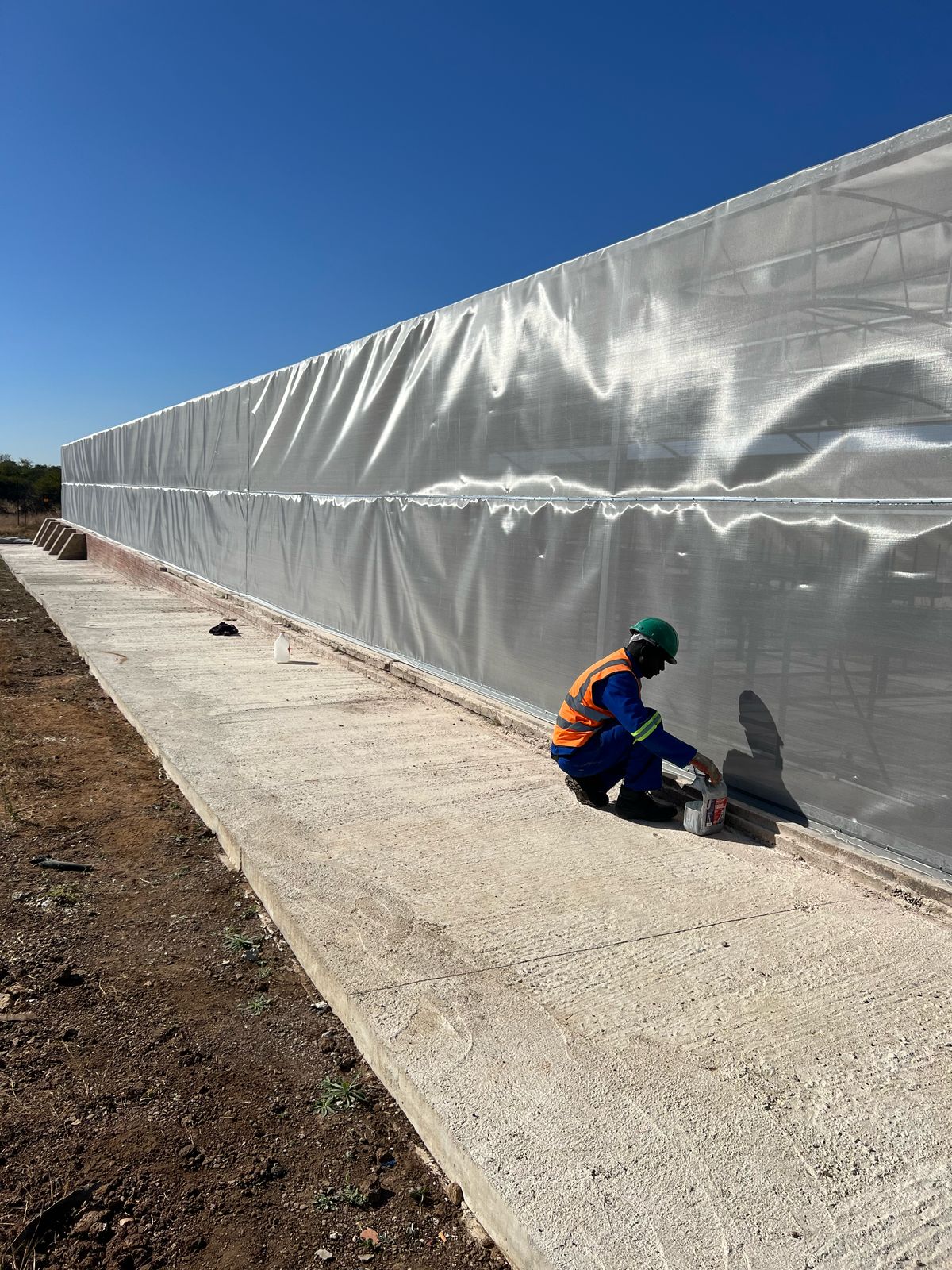

- Architectural facades
It often replaces wood or plastic due to its longer service life and durability.

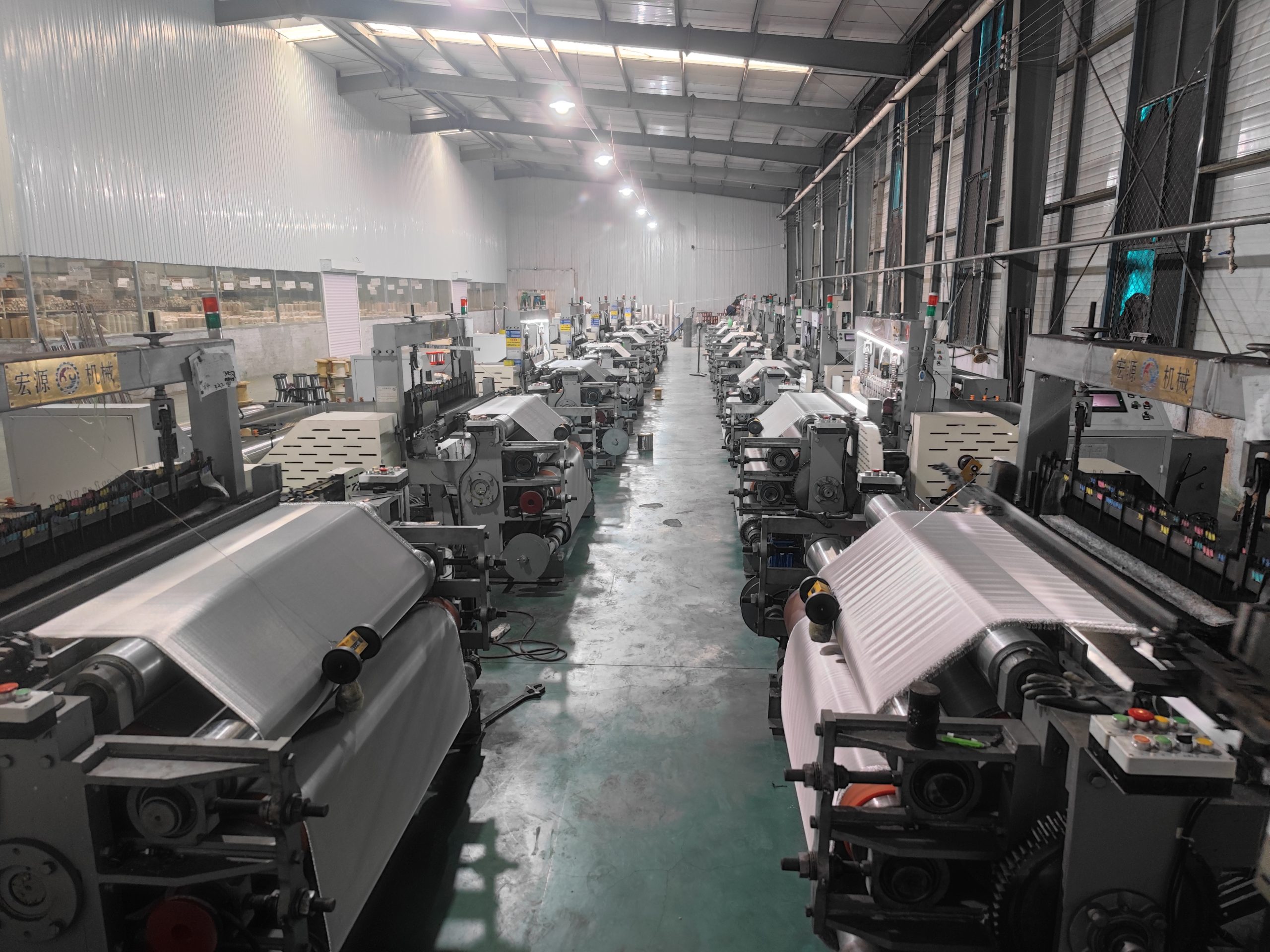

Part 5: Why Hightop Metal Mesh – A Factory, Not a Trader
1. Factory-Direct Pricing and Inventory
We produce in-house, eliminating middlemen.
Result: 15–25% cost savings without sacrificing quality.

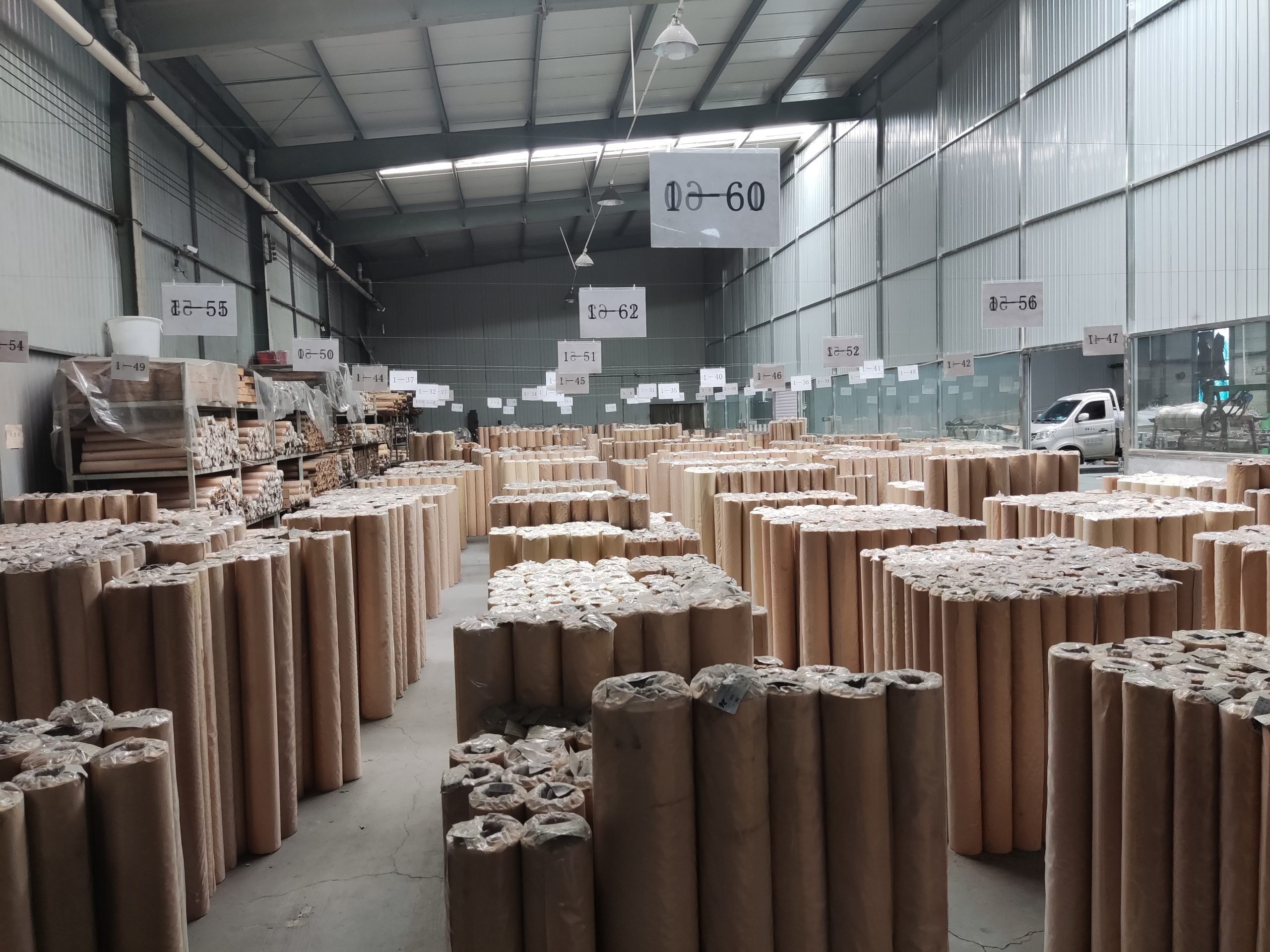

Items currently in stock will be delivered within 7 days.
- Extensive Export Experience
We regularly ship to:
- USA (Houston, Los Angeles, Savannah)
- Germany (Hamburg, Bremerhaven)
- Brazil (Santos, Paranaguá)
- Chile (San Antonio)
- Argentina (Buenos Aires)
We provide all required export documents, including:
- Commercial Invoice
- Packing List
- Bill of Lading
- Certificate of Origin
- Material Test Reports
3. Verifiable Quality Control
Each batch undergoes:
- Incoming coil inspection
- In-process weaving checks
- Final inspection (length, edges, packaging)
We also provide digital photos of each roll before shipment.
4. Export-Grade Protective Packaging
To prevent corrosion during long shipping routes:
- Anti-rust VCI paper
- Plastic film wrapping
- ISPM15-certified wooden pallets
- Edge protection
5. Fast and Responsive Communication
We respond to all inquiries within 24 hours, often sooner.
Tell us your application, mesh count, wire diameter, and sheet/roll size.
We will reply with a specification confirmation and a competitive factory price within 24 hours.
