Stainless Steel Wedge Wire Screen Panels (Johnson Screens)

Features of wedge wire mesh

  • Extended lifetime: High hardness ensures that slot remains no change during abrasive operation on the screen surface
  • Capability to withstand heavy loads
  • Smooth and flat surface

Stainless Steel Wedge Wire Screen Panels (Johnson Screens)

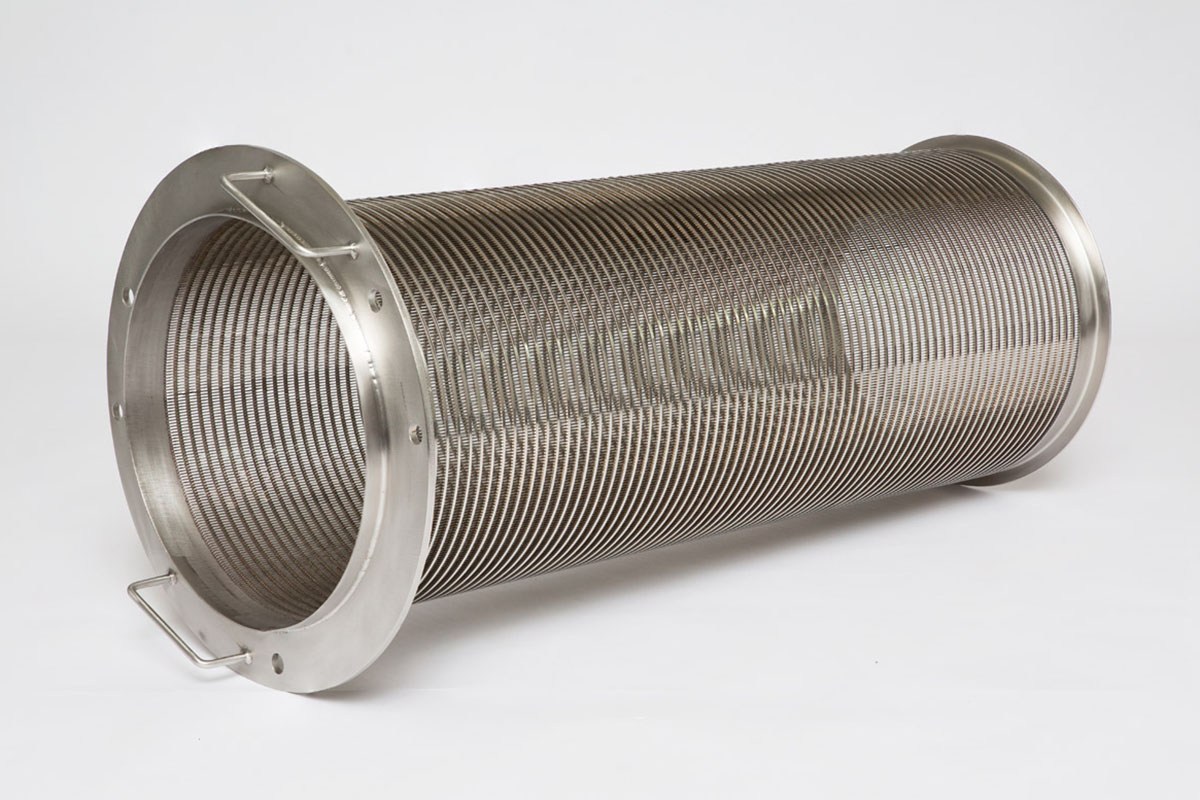

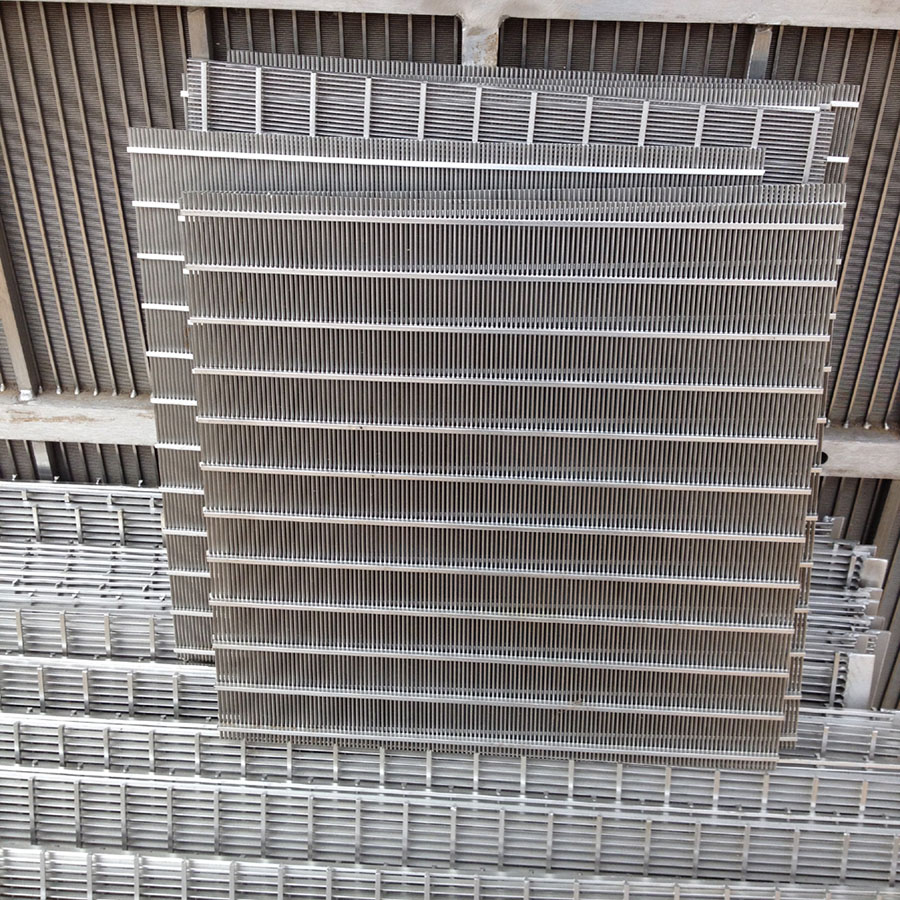

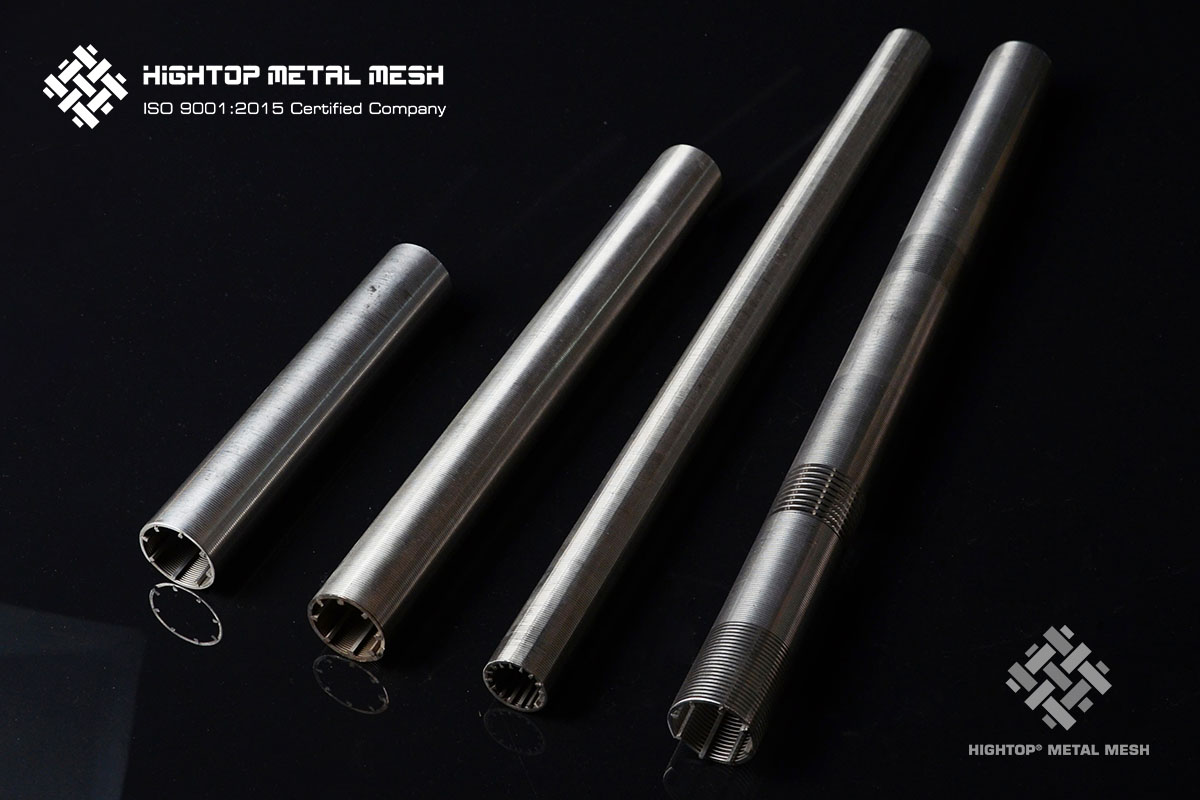

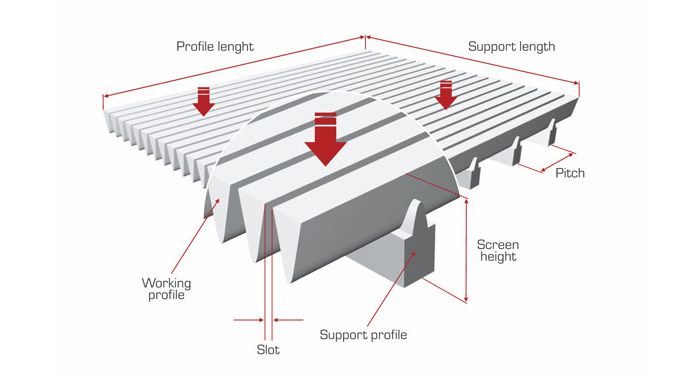

Stainless steel Wedge wire screen panels, also known as stainless steel Johnson screens or profile screen, is a metal mesh structure element used for screening and filtering. Wedge wire screen is manufactured with surface profile and support profile. The surface profile and support profile are resistance welded at each point of contact. The cross-section of the mesh wire is commonly triangle, and the opening is narrow at the top and wide at the bottom that keeps the larger particles outside. The uniform opening, high strength of the welding structure ensured a precise capability of separation & filtration and are capable of withstanding heavy loads as well. It can be made into rigid screening and filtering devices of various shapes.

As a newly developed product in the wire mesh industry, stainless steel Wedge wire screen panels enjoys countless benefits compared with traditional plastic filter elements, it delivers a high flow rate and presents better adaptability to temperature changes, and so on.

The screen carries the characteristics of high strength, high hardness, wear-resistance, corrosion resistance, easy cleaning. The products are widely used for filtration and separation in mining, coal, petroleum, pharmaceutical, food, waste-water industries.

Features

  • Great adaptability to temperature change
  • Excellent corrosion resistance
  • Anti-Clogging slot
  • High precision of filtration & separation

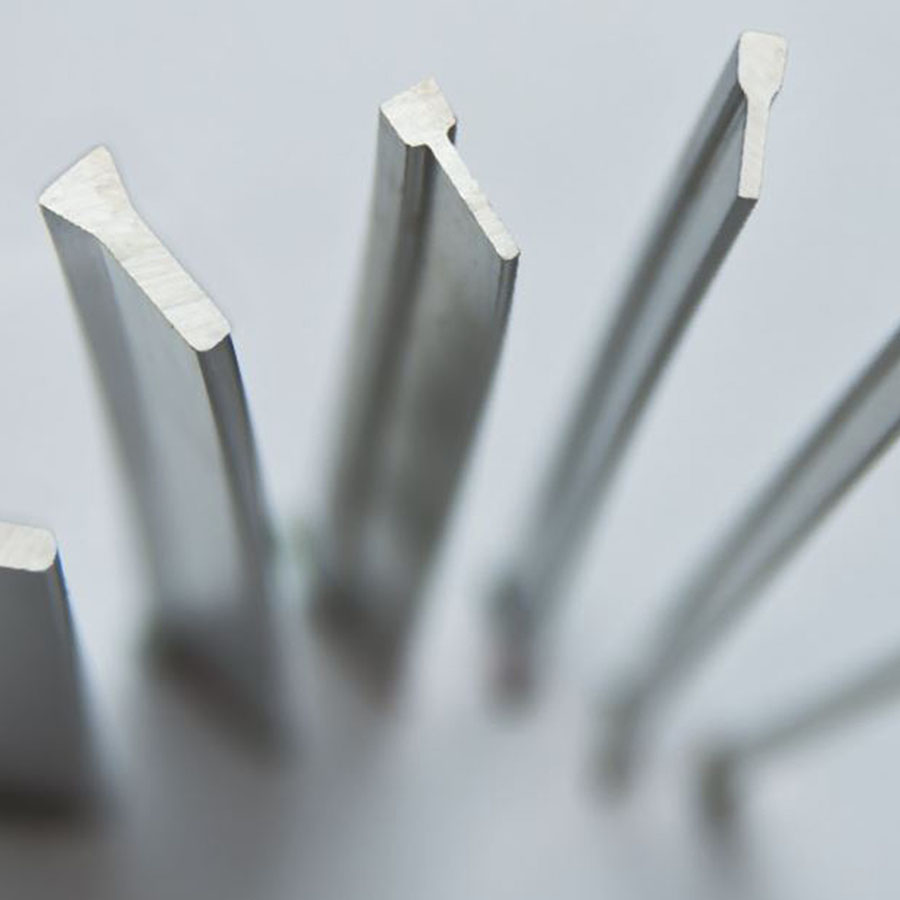

Surface Profile W H Material
10S 0.75 1.425 304, 316/316L, Hastelloy,
Monel alloy of nickel and titanium,
and other stainless steel
11SL 0.75 1.8
22S 1.8 3.7
4S 0.45 1.2
50SL 3.4 7.5
Support Profile W H Material
Q22 2 2.28 304, 316/316L, Hastelloy,
Monel alloy of nickel and titanium,
and other stainless steel
Q35 3 5
Q53 5 3
D56 5 5.6
D45 3.8 6.0

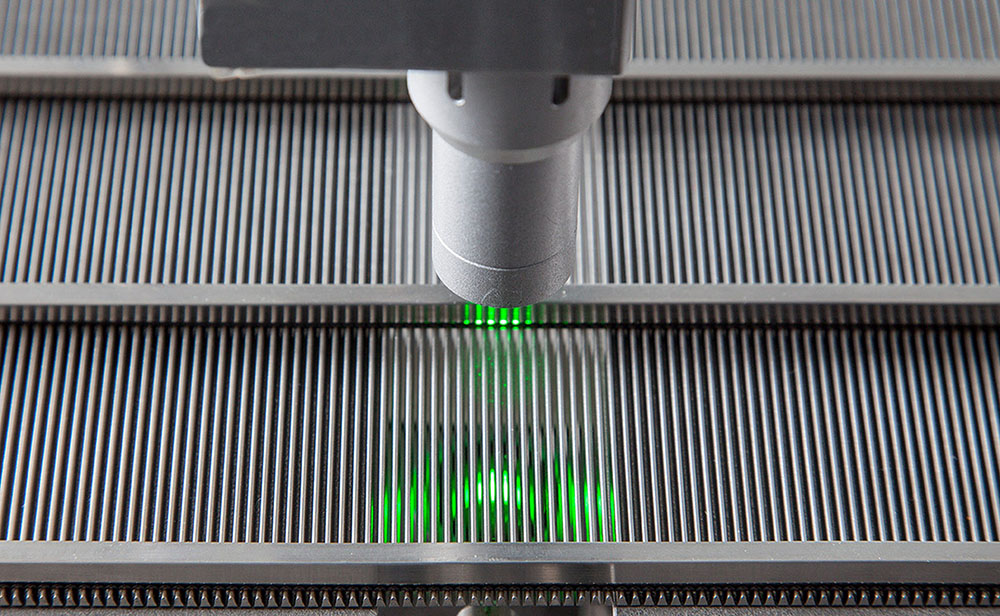

Application for Wedge wire mesh

  • Gas and oil industry
  • Chemical industry
  • Mining
  • Food industry
  • Pharmaceutical
  • Water process

wedge wire screen

Specifications

Surface Profile W H Material
10S 0.75 1.425 304, 316/316L, Hastelloy,
Monel alloy of nickel and titanium,
and other stainless steel
11SL 0.75 1.8
22S 1.8 3.7
4S 0.45 1.2
50SL 3.4 7.5
Support Profile W H Material
Q22 2 2.28 304, 316/316L, Hastelloy,
Monel alloy of nickel and titanium,
and other stainless steel
Q35 3 5
Q53 5 3
D56 5 5.6
D45 3.8 6.0
Applications

Application for Wedge wire mesh

  • Gas and oil industry
  • Chemical industry
  • Mining
  • Food industry
  • Pharmaceutical
  • Water process

wedge wire screen
