Stainless Steel Perforated Sheet Metal Mesh

  • Material: SS 302, 304, 316, 304L, 316L, etc.
  • Hole pattern: Round, square, slotted, hexagonal, star, & decorative hole patterns.
  • Sheet thickness: 0.5-5mm
  • Hole Dia: 0.5-20mm
  • Width: 0.1m-2m
  • Length: up to 5m

Perforated Stainless Steel Sheet Metal

Hightop is one of the best perforated metal sheet suppliers and manufacturers in China. Stainless steel perforated sheet metal also called perforated metal screen, perforated metal panels, is a stainless steel sheet with holes, the steel sheet is punched with various holes to meet different needs. The hole patterns can be round hole, slotted hole, square hole, diamond hole, hexagonal, triangle, and other decorative shapes. Perforated stainless steel sheet metal is available in different thicknesses and width ranging from 24 gauge in diameter and up to 72″ in width. It can have either small or large aesthetically appealing holes which make it ideal for companies who seek overall protection while maintaining its aesthetic appearance. Because of this, it has become one of the most versatile and popular metal products on the market today.

It can be used for environmental noise control barriers in transportation and municipal facilities such as highways, railways, and subways that pass through urban areas, sound insulation, and noise reduction panels for building walls, generator rooms, factory building, and other noise sources.

  • Various hole pattern which is visually striking
  • Customizable coatings which increase the lifetime of the steel
  • Recyclable, sustainable and reusable
  • Corrosion resistance
  • Excellent function in noise absorption
  • Attractive appearance
  • Longer service life

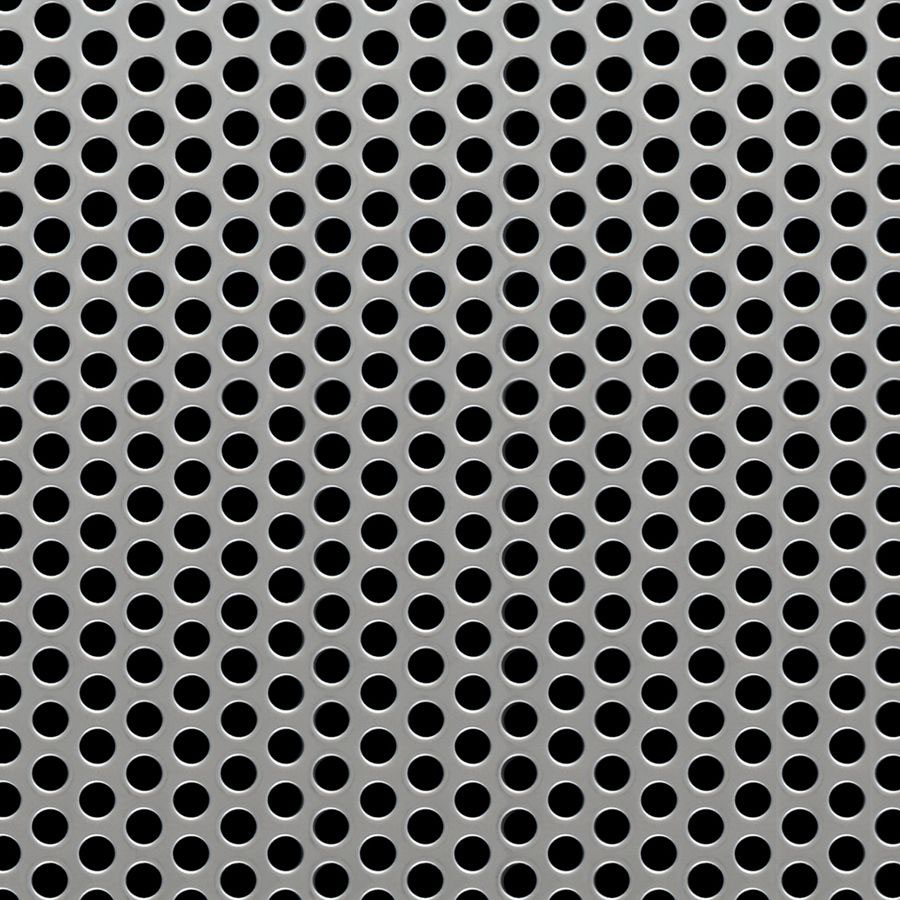

stainless steel perforated sheet metal
Stainless Steel Perforated Sheet Metal

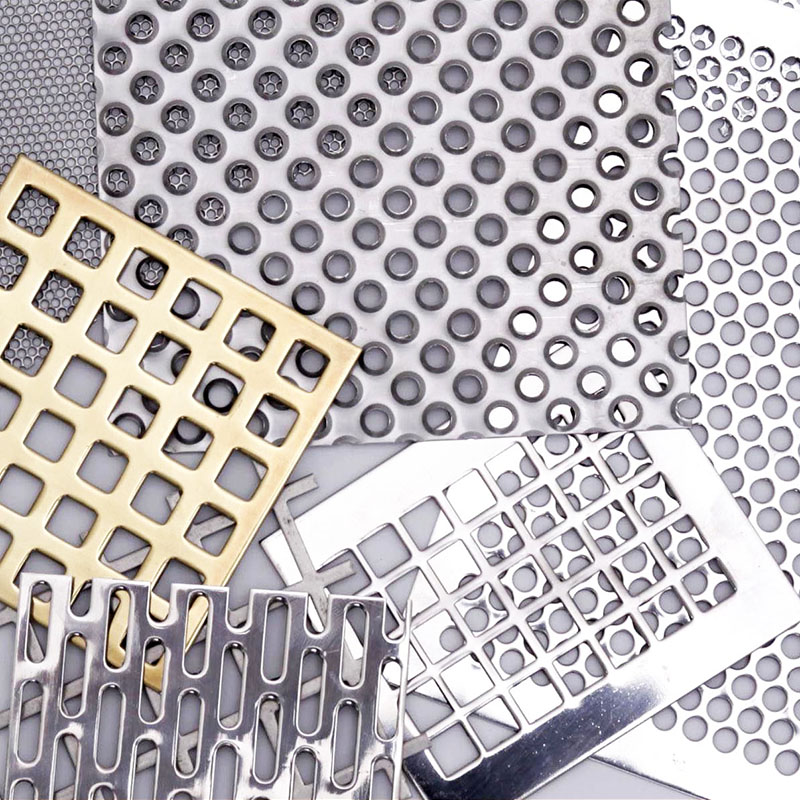

round hole perforated metal
Round Hole Perforated Metal

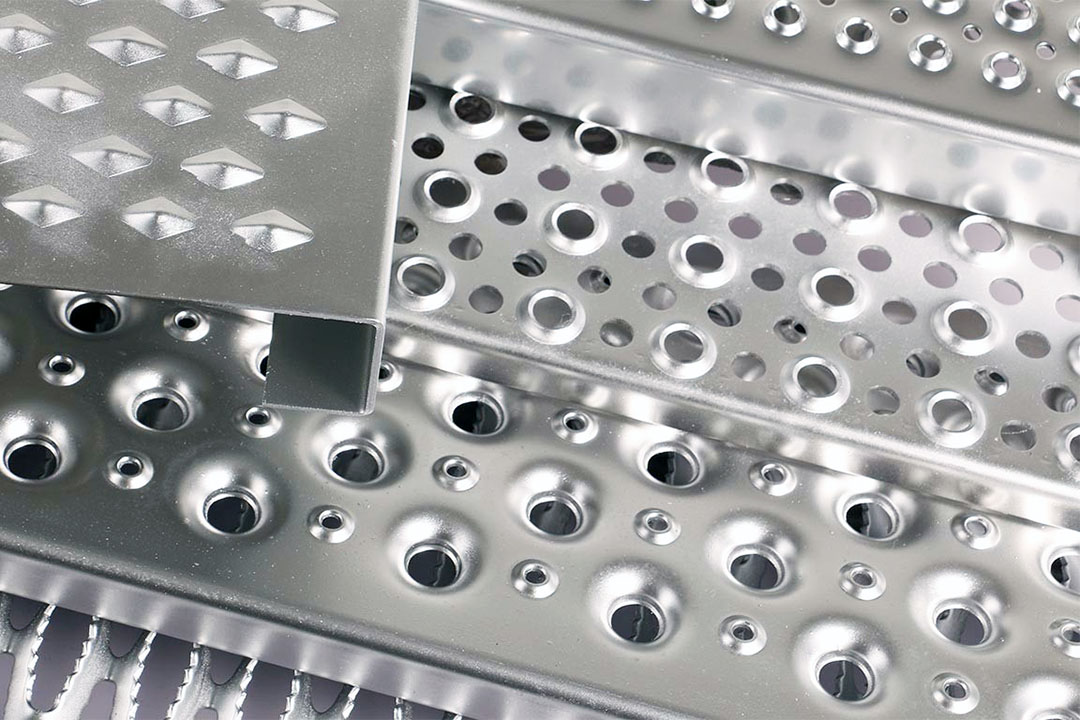

stainless steel sheet with holes
Perforated Grating

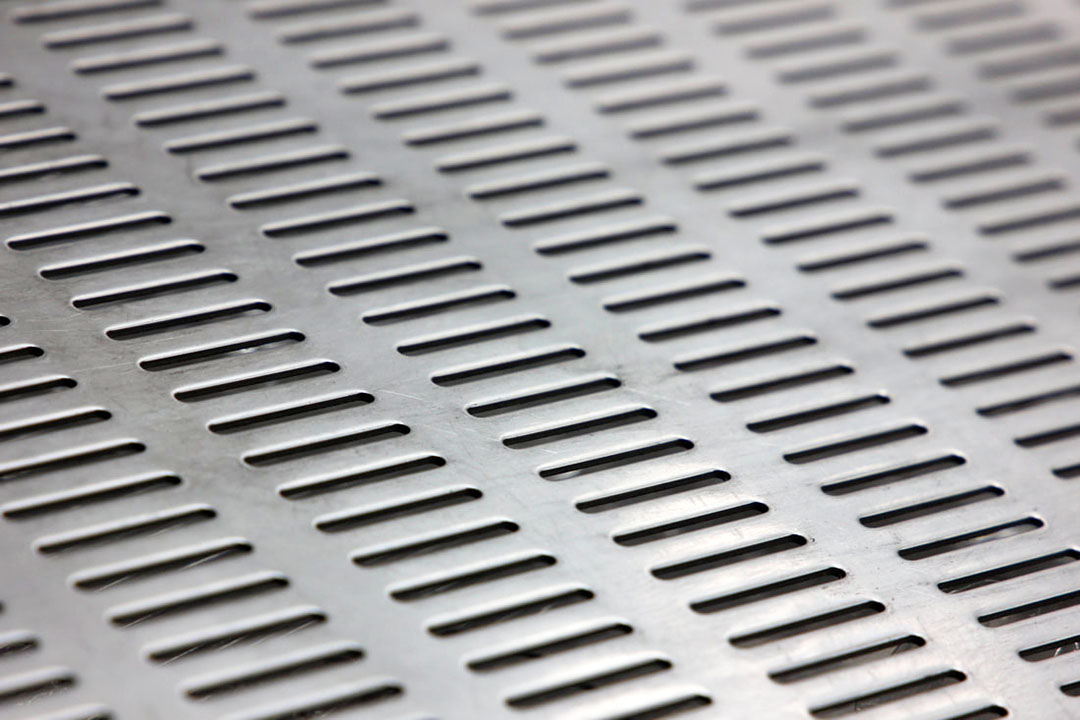

slotted perforated sheet metal
Slotted Perforated Sheet Metal

Specifications of Perforated Stainless Steel Mesh

For round hole perforated metal mesh

Item# Hole Dia. in mm Pitch, mm Open Area Thickness of the sheet
0.5
mm
0.8
mm
1.0
mm
1.2
mm
1.5
mm
2.0
mm
2.5
mm
3.0
mm
4.0
mm
5.0
mm
HTP60D 0.5/1.25 0.5 1.25 14.5%
HTP60D 0.8/1.8 0.8 1.8 17.9%
HTP60D 0.8/2.0 0.8 2 14.5%
HTP60D 1.0/2.0 1 2 22.7%
HTP60D 1.25/2.5 1.25 2.5 22.7%
HTP60D 2.0/3.0 2 3 40.3%
HTP60D 2.0/4.0 2 4 22.7%
HTP60D 3.0/4.0 3 4 51.0%
HTP60D 3.0/5.0 3 5 32.6%
HTP60D 3.0/6.0 3 6 22.7%
HTP60D 4.0/6.0 4 6 40.3%
HTP60D 4.0/7.0 4 7 29.6%
HTP60D 4.0/8.0 4 8 22.7%
HTP60D 5.0/7.0 5 7 46.3%
HTP60D 5.0/8.0 5 8 35.4%
HTP60D 5.0/9.0 5 9 28.0%
HTP60D 5.0/10 5 10 22.7%
HTP60D 6.0/8.0 6 8 51.0%
HTP60D 6.0/8.5 6 8.5 45.2%
HTP60D 6.0/9.0 6 9 40.3%
HTP60D 6.0/10 6 10 32.6%
HTP60D 6.0/12 6 12 22.7%
HTP60D 8.0/10 8 10 58.0%
HTP60D 8.0/11 8 11 48.0%
HTP60D 8.0/12 8 12 40.3%
HTP60D 8.0/13 8 13 34.3%
HTP60D 8.0/14 8 14 29.6%
HTP60D 8.0/15 8 15 25.8%
HTP60D 8.0/16 8 16 22.7%
HTP60D 9.0/12 9 12 51.0%
HTP60D 9.0/13 9 13 43.5%
HTP60D 9.0/14 9 14 37.5%
HTP60D 9.0/15 9 15 32.6%
HTP60D 9.0/16 9 16 28.7%
HTP60D 9.0/17 9 17 25.4%
HTP60D 9.0/18 9 18 22.7%
HTP60D 10/13 10 13 53.7%
HTP60D 10/14 10 14 46.3%
HTP60D 10/15 10 15 40.3%
HTP60D 10/16 10 16 35.4%
HTP60D 10/17 10 17 31.4%
HTP60D 10/18 10 18 28.0%
HTP60D 10/19 10 19 25.1%
HTP60D 10/20 10 20 22.7%
HTP60D 15/20 15 20 51.0%
HTP60D 15/25 15 25 32.6%
HTP60D 15/30 15 30 22.7%
HTP60D 20/25 20 25 58.0%
HTP60D 20/30 20 30 40.3%
HTP60D 20/40 20 40 22.7%

Applications of Stainless Steel Perforated Metal Panels

Stainless steel perforated metal panels cover a wide range of industries, like chemical machinery, pharmaceutical equipment, grind sieve of food and beverage machines, cigarette machines, harvesters, dry-cleaning machine, ironing table, silencing equipment, refrigeration equipment(central air-conditioning), gorgeous speaker net cover, kitchenware like fruit tray, shelves net of the shopping mall, football pitch lawn water seepage filters, craft production, paper making, hydraulic equipment, filtration equipment, building interior & exterior wall decorations and various industries.

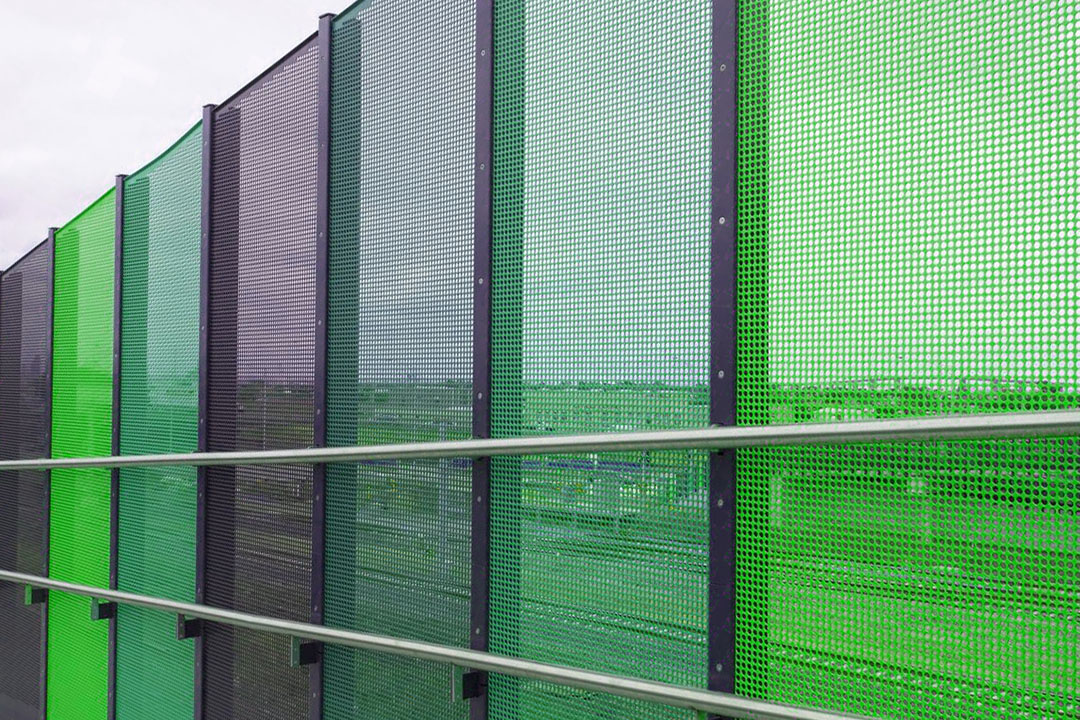

perforated metal fence
Fence

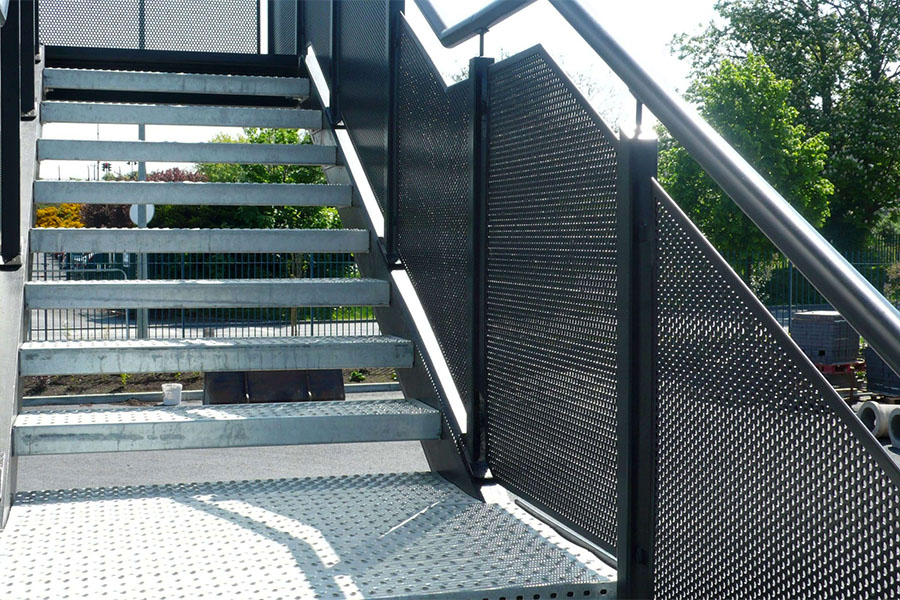

perforated metal stairs
Stairs and Handrails

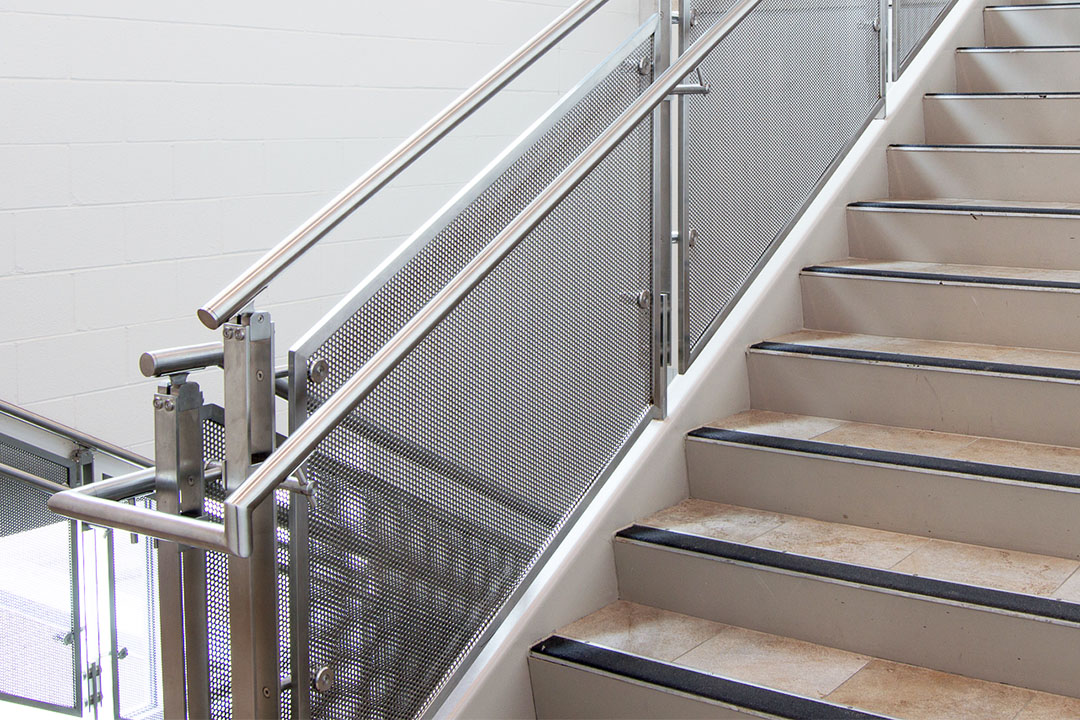

perforated metal balustrade
Balustrade Infill Panels

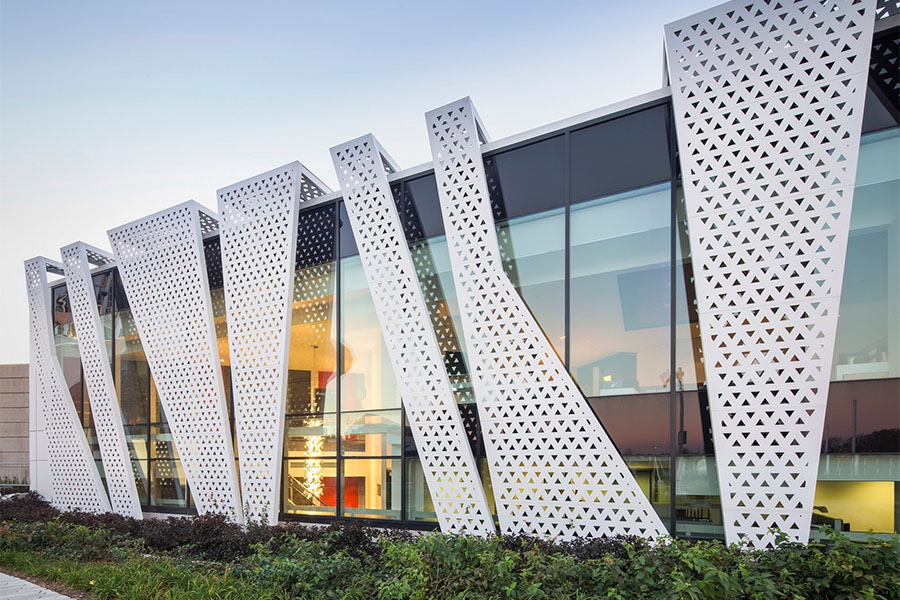

expanded metal facade
Facade and Cladding
Features
  • Various hole pattern which is visually striking
  • Customizable coatings which increase the lifetime of the steel
  • Recyclable, sustainable and reusable
  • Corrosion resistance
  • Excellent function in noise absorption
  • Attractive appearance
  • Longer service life
stainless steel perforated sheet metal
Stainless Steel Perforated Sheet Metal
round hole perforated metal
Round Hole Perforated Metal
stainless steel sheet with holes
Perforated Grating
slotted perforated sheet metal
Slotted Perforated Sheet Metal
Specifications

Specifications of Perforated Stainless Steel Mesh

For round hole perforated metal mesh

Item# Hole Dia. in mm Pitch, mm Open Area Thickness of the sheet
0.5
mm
0.8
mm
1.0
mm
1.2
mm
1.5
mm
2.0
mm
2.5
mm
3.0
mm
4.0
mm
5.0
mm
HTP60D 0.5/1.25 0.5 1.25 14.5%
HTP60D 0.8/1.8 0.8 1.8 17.9%
HTP60D 0.8/2.0 0.8 2 14.5%
HTP60D 1.0/2.0 1 2 22.7%
HTP60D 1.25/2.5 1.25 2.5 22.7%
HTP60D 2.0/3.0 2 3 40.3%
HTP60D 2.0/4.0 2 4 22.7%
HTP60D 3.0/4.0 3 4 51.0%
HTP60D 3.0/5.0 3 5 32.6%
HTP60D 3.0/6.0 3 6 22.7%
HTP60D 4.0/6.0 4 6 40.3%
HTP60D 4.0/7.0 4 7 29.6%
HTP60D 4.0/8.0 4 8 22.7%
HTP60D 5.0/7.0 5 7 46.3%
HTP60D 5.0/8.0 5 8 35.4%
HTP60D 5.0/9.0 5 9 28.0%
HTP60D 5.0/10 5 10 22.7%
HTP60D 6.0/8.0 6 8 51.0%
HTP60D 6.0/8.5 6 8.5 45.2%
HTP60D 6.0/9.0 6 9 40.3%
HTP60D 6.0/10 6 10 32.6%
HTP60D 6.0/12 6 12 22.7%
HTP60D 8.0/10 8 10 58.0%
HTP60D 8.0/11 8 11 48.0%
HTP60D 8.0/12 8 12 40.3%
HTP60D 8.0/13 8 13 34.3%
HTP60D 8.0/14 8 14 29.6%
HTP60D 8.0/15 8 15 25.8%
HTP60D 8.0/16 8 16 22.7%
HTP60D 9.0/12 9 12 51.0%
HTP60D 9.0/13 9 13 43.5%
HTP60D 9.0/14 9 14 37.5%
HTP60D 9.0/15 9 15 32.6%
HTP60D 9.0/16 9 16 28.7%
HTP60D 9.0/17 9 17 25.4%
HTP60D 9.0/18 9 18 22.7%
HTP60D 10/13 10 13 53.7%
HTP60D 10/14 10 14 46.3%
HTP60D 10/15 10 15 40.3%
HTP60D 10/16 10 16 35.4%
HTP60D 10/17 10 17 31.4%
HTP60D 10/18 10 18 28.0%
HTP60D 10/19 10 19 25.1%
HTP60D 10/20 10 20 22.7%
HTP60D 15/20 15 20 51.0%
HTP60D 15/25 15 25 32.6%
HTP60D 15/30 15 30 22.7%
HTP60D 20/25 20 25 58.0%
HTP60D 20/30 20 30 40.3%
HTP60D 20/40 20 40 22.7%
Application Cases

Applications of Stainless Steel Perforated Metal Panels

Stainless steel perforated metal panels cover a wide range of industries, like chemical machinery, pharmaceutical equipment, grind sieve of food and beverage machines, cigarette machines, harvesters, dry-cleaning machine, ironing table, silencing equipment, refrigeration equipment(central air-conditioning), gorgeous speaker net cover, kitchenware like fruit tray, shelves net of the shopping mall, football pitch lawn water seepage filters, craft production, paper making, hydraulic equipment, filtration equipment, building interior & exterior wall decorations and various industries.

perforated metal fence
Fence
perforated metal stairs
Stairs and Handrails
perforated metal balustrade
Balustrade Infill Panels
expanded metal facade
Facade and Cladding
