Stainless Steel Welded Wire Mesh Panels & Rolls

  • Material: 302, 304, 304, 304L, 316, 316L, etc.
  • Wire Dia: 0.4-3mm (0.017-0.118)
  • Mesh size: 1/8 to 2 in.
  • Width: 0.5-1.8m
  • Length: 0.5-30m

Stainless Steel Welded Wire Mesh

Stainless steel welded wire mesh panels and rolls are metal mesh products formed by welding a series of crisscrossed stainless wires together by a resistance welding machine. Welded mesh with 3-25mm (1/8-1 in.) openings is also called hardware cloth.

This welding structure makes the mesh openings not easily deformed by external forces. Because 304 and 316 stainless steel have excellent corrosion resistance, it is more resistant to rust than galvanized weld mesh, especially at the welding points where the wires cross. Therefore, stainless steel welded wire mesh has a much longer service life than galvanized material.

Stainless steel welded mesh has uniform grid patterns, the delivery conditions are usually rolls, sheets or panels, depending on the wire diameter and customer requirements. The commonly used materials are available in 201, 202, 304, 304L, 316, 316L, other grades can be customized according to customer requirements.

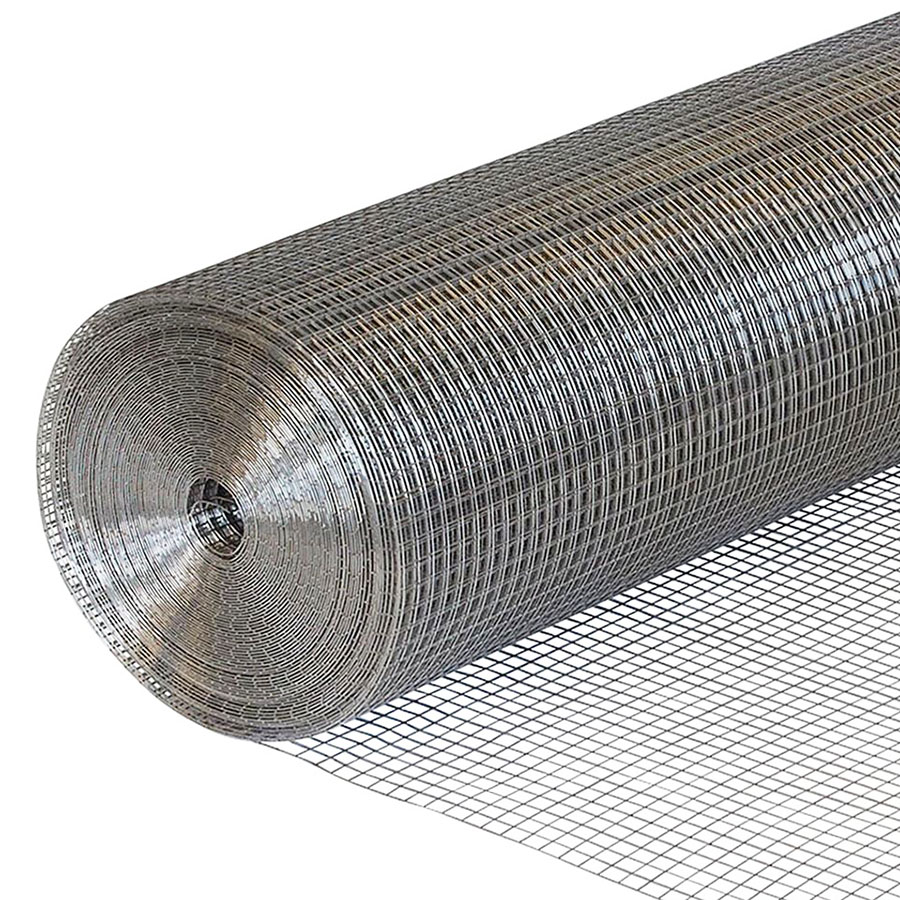

Specifications of Stainless Steel Wire Mesh Rolls

Stainless steel welded wire mesh rolls used for hardware cloth, available in welded and woven structure.

Type Mesh Size Diameter Weight (Approximate)
mm in. mm in. kg/m2  lb/100 ft2
Woven 3.2  1/8 0.439 0.0173 1.86 38
Welded 6.4  1/4 0.551 0.0217 1.66 34
Woven 6.4  1/4 0.655 0.0258 1.86 38
Woven 8.5  1/3 0.805 0.0317 1.77 36
Welded 8.5  1/3 0.805 0.0317 0.65 13
Welded 10.6  3/7 0.899 0.0354 1.21 25
Welded 12.7  1/2 0.655 0.0258 1.86 38
Welded 12.7  1/2 0.805 0.0317 1.66 34
Woven 12.7  1/2 1.04 0.041 0.78 16
Welded 12.7  1/2 1.04 0.041 2.54 52
Welded 12.7  1/2 1.57 0.062 1.22 25
Welded 12.7 x 25.4 1/2 x 1 1.04 0.041 1.32 27
Welded 12.7 x 25.4 1/2 x 1 1.45 0.057 0.70 14
Welded 12.7 x 25.4 1/2 x 1 1.57 0.062 0.47 10
Welded 15.9  5/8 1.20 0.047 1.11 23
Welded 19.0  3/4 1.04 0.041 1.11 23
Welded 19.0  3/4 1.45 0.057 1.27 26
Welded 19.0  3/4 1.57 0.062 1.22 25
Welded 25.4 x 12.7 1 x 1/2 1.45 0.057 0.69 14
Welded 25.4 x 12.7 1 x 1/2 1.57 0.062 1.07 22

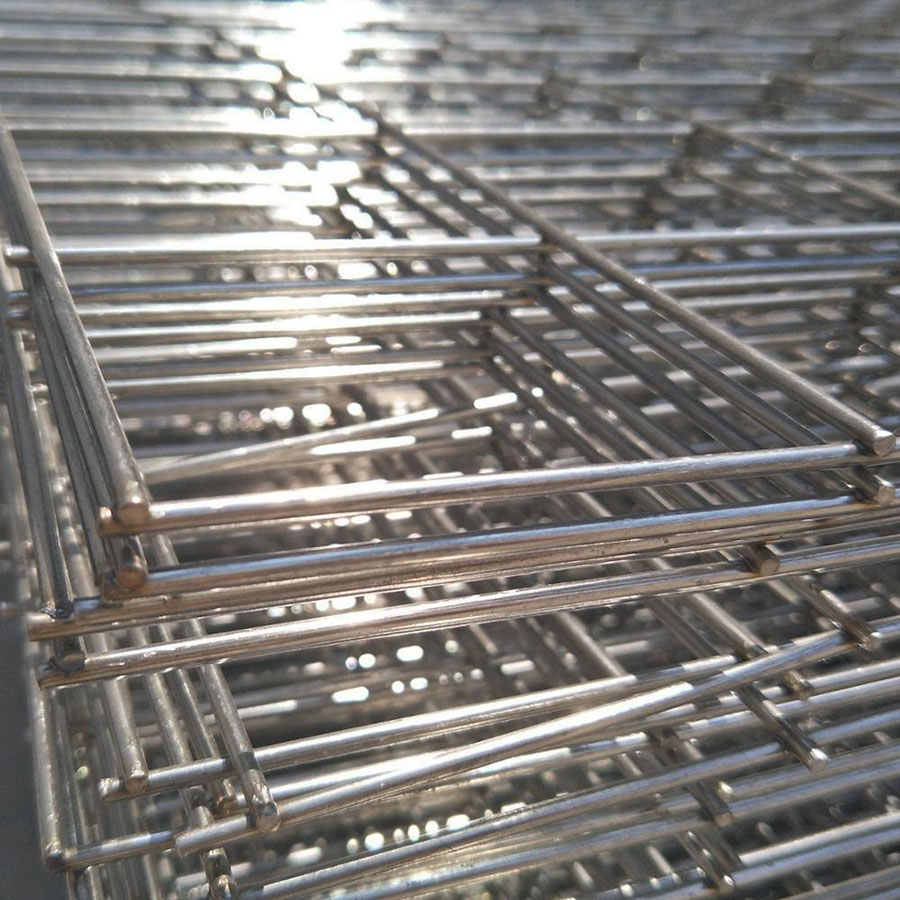

Specifications of Heavy Duty Stainless Steel Welded Wire Mesh Panels

The heavy duty stainless steel welded wire mesh panels has a larger wire diameter and mesh size.

Mesh Size Wire Gauge (BWG)
Inch mm
1/4″ x 1/4″ 6.4mm x 6.4mm 22, 23, 24
3/8″ x 3/8″ 10.6mm x 10.6mm 19, 20, 21, 22
1/2″ x 1/2″ 12.7mm x 12.7mm 16, 17, 18, 19, 20, 21, 22, 23
5/8″ x 5/8″ 16mm x 16mm 18, 19, 20, 21
3/4″ x 3/4″ 19.1mm x 19.1mm 16, 17, 18, 19, 20, 21
1″ x 1/2″ 25.4mm x 12.7mm 16, 17, 18, 19, 20, 21
1-1/2″ x 1-1/2″ 38mm x 38mm 14, 15, 16, 17, 18, 19
1″ x 2″ 25.4mm x 50.8mm 14, 15, 16
2″ x 2″ 50.8mm x 50.8mm 12, 13, 14

Features of Stainless Steel Welded Mesh

  • Excellent rust resistance
  • Uniform mesh
  • High strength
  • Long lasting
  • Bright surface
  • Versatile

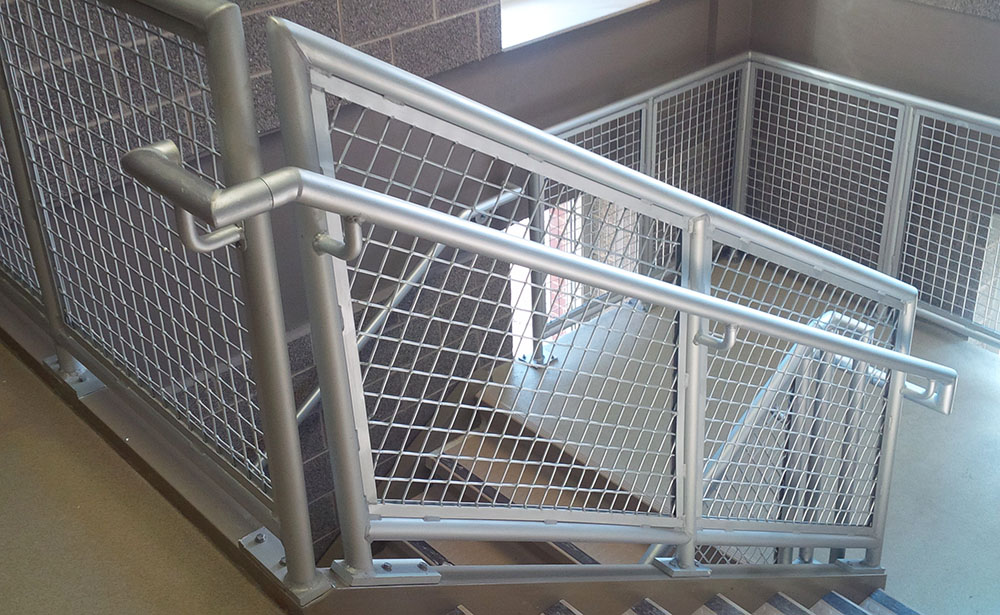

Application of Stainless Steel Weld Mesh

  • Road fencing & household defending fencing
  • Reinforcement for plaster of concrete
  • Machine protection
  • Architecture Grills
  • Detention & Security
  • Racks & basket
  • Indoor & outdoor decoration
  • Test sieve cloth
  • Poultry Cultivation
  • Zoo animal cages

Specifications

Specifications of Stainless Steel Wire Mesh Rolls

Stainless steel welded wire mesh rolls used for hardware cloth, available in welded and woven structure.

Type Mesh Size Diameter Weight (Approximate)
mm in. mm in. kg/m2  lb/100 ft2
Woven 3.2  1/8 0.439 0.0173 1.86 38
Welded 6.4  1/4 0.551 0.0217 1.66 34
Woven 6.4  1/4 0.655 0.0258 1.86 38
Woven 8.5  1/3 0.805 0.0317 1.77 36
Welded 8.5  1/3 0.805 0.0317 0.65 13
Welded 10.6  3/7 0.899 0.0354 1.21 25
Welded 12.7  1/2 0.655 0.0258 1.86 38
Welded 12.7  1/2 0.805 0.0317 1.66 34
Woven 12.7  1/2 1.04 0.041 0.78 16
Welded 12.7  1/2 1.04 0.041 2.54 52
Welded 12.7  1/2 1.57 0.062 1.22 25
Welded 12.7 x 25.4 1/2 x 1 1.04 0.041 1.32 27
Welded 12.7 x 25.4 1/2 x 1 1.45 0.057 0.70 14
Welded 12.7 x 25.4 1/2 x 1 1.57 0.062 0.47 10
Welded 15.9  5/8 1.20 0.047 1.11 23
Welded 19.0  3/4 1.04 0.041 1.11 23
Welded 19.0  3/4 1.45 0.057 1.27 26
Welded 19.0  3/4 1.57 0.062 1.22 25
Welded 25.4 x 12.7 1 x 1/2 1.45 0.057 0.69 14
Welded 25.4 x 12.7 1 x 1/2 1.57 0.062 1.07 22

Specifications of Heavy Duty Stainless Steel Welded Wire Mesh Panels

The heavy duty stainless steel welded wire mesh panels has a larger wire diameter and mesh size.

Mesh Size Wire Gauge (BWG)
Inch mm
1/4″ x 1/4″ 6.4mm x 6.4mm 22, 23, 24
3/8″ x 3/8″ 10.6mm x 10.6mm 19, 20, 21, 22
1/2″ x 1/2″ 12.7mm x 12.7mm 16, 17, 18, 19, 20, 21, 22, 23
5/8″ x 5/8″ 16mm x 16mm 18, 19, 20, 21
3/4″ x 3/4″ 19.1mm x 19.1mm 16, 17, 18, 19, 20, 21
1″ x 1/2″ 25.4mm x 12.7mm 16, 17, 18, 19, 20, 21
1-1/2″ x 1-1/2″ 38mm x 38mm 14, 15, 16, 17, 18, 19
1″ x 2″ 25.4mm x 50.8mm 14, 15, 16
2″ x 2″ 50.8mm x 50.8mm 12, 13, 14
Features

Features of Stainless Steel Welded Mesh

  • Excellent rust resistance
  • Uniform mesh
  • High strength
  • Long lasting
  • Bright surface
  • Versatile
Applications

Application of Stainless Steel Weld Mesh

  • Road fencing & household defending fencing
  • Reinforcement for plaster of concrete
  • Machine protection
  • Architecture Grills
  • Detention & Security
  • Racks & basket
  • Indoor & outdoor decoration
  • Test sieve cloth
  • Poultry Cultivation
  • Zoo animal cages
